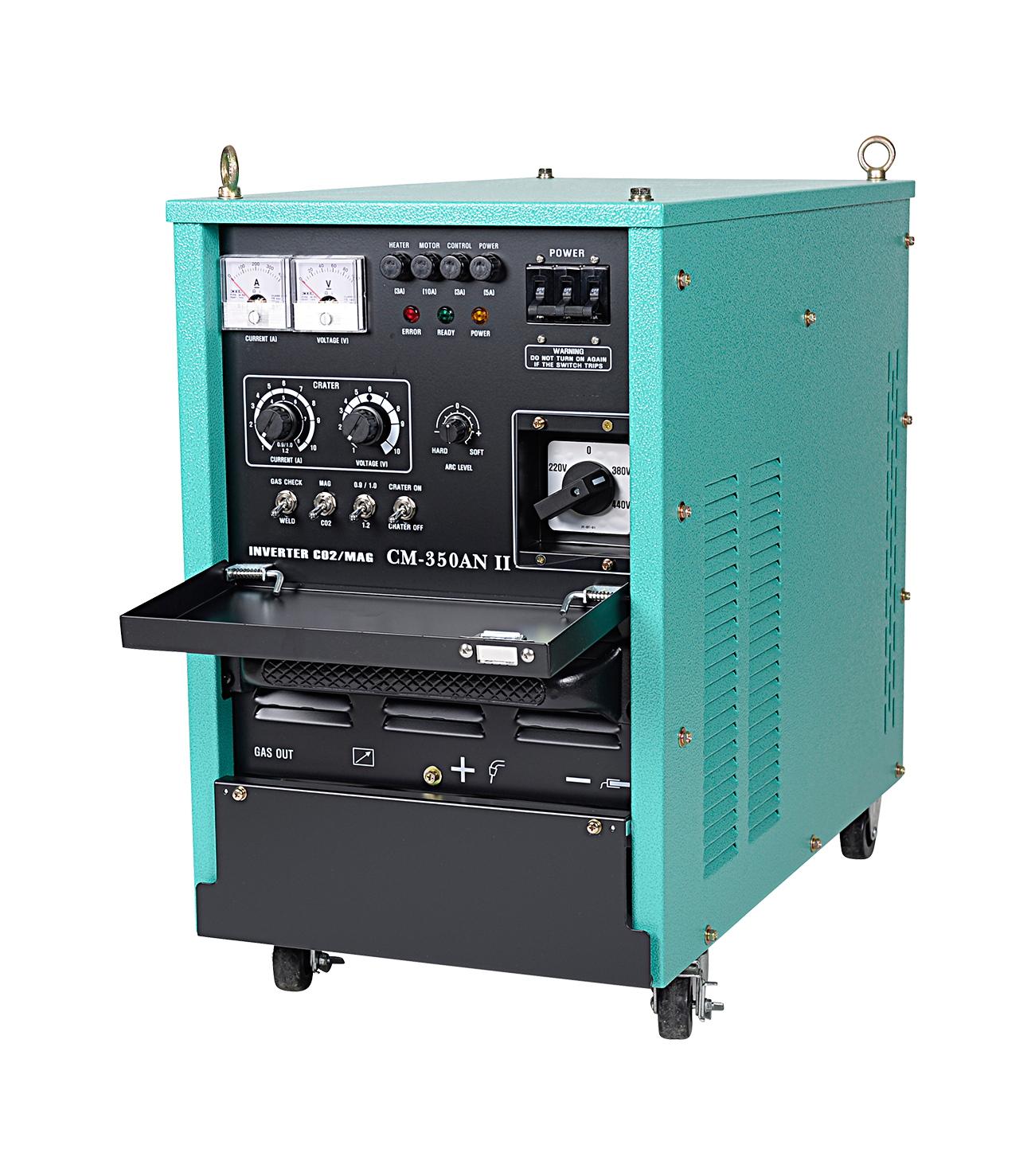

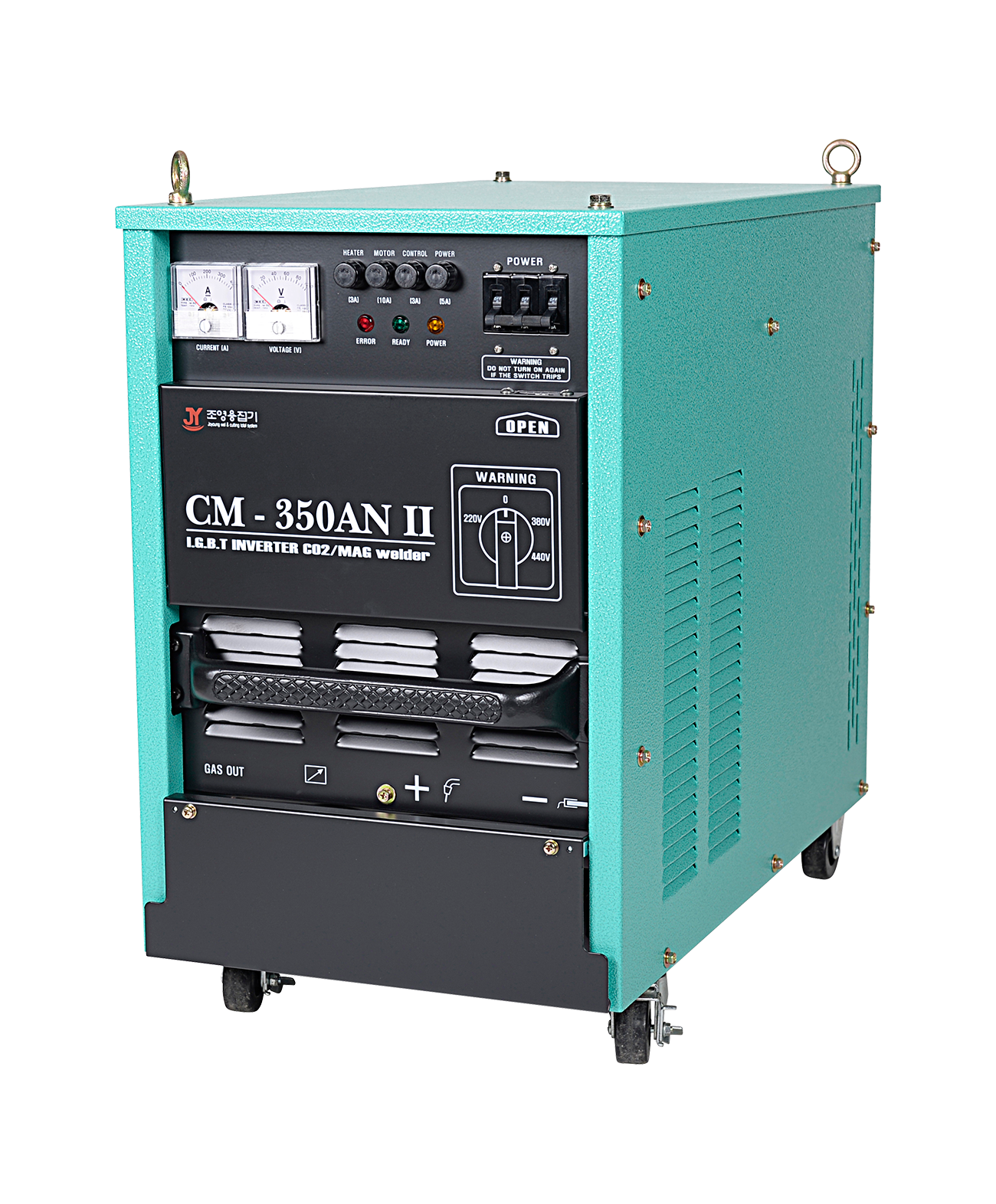

CM CM-350AN
Special Feature
| 특장점① | * High-speed welding and sustainable arc |
|---|---|
| 특장점② | * Reduced generation of spatter |
| 특장점③ | * Energy Saving |
| 특장점④ | * Small size and light weight |
| 특장점⑤ | * Improved quality and work efficiency with high-speed welding |
| 특장점⑥ | * Sustainable weldability |
| 특장점⑦ | * Beautiful welding beads / * Sharp design / * 220V/380V/440V combined use |
| 규격 | 360 x 623 x 580 (360 x 693 x 615) |
| 기타 | ※ Product specification can be changed unexpectedly for product performance improvement. |
제품설명
Specification | ||
Output Current range | A | 50~350 |
Output Voltage range | V | 14~36 |
Input Voltage | V | 220V / 380V / 440V ± 10% |
Input Phase |
| 3 Phase |
Rated Frequency | Hz | 50/60 |
Rated Input | KVA | 14.48 |
Rated load Voltage | V | 36 |
No load Voltage | V | 68 |
Duty Cycle | % | 60 |
Controler | | I.G.B.T |
Dimension (WxDxH) | W*D*H (m/m) | 360 x 623 x 580(360 x 693 x 615) |
Weight | kg | 55 |
※ Product specification can be changed unexpectedly for product performance improvement.
