제품 정보

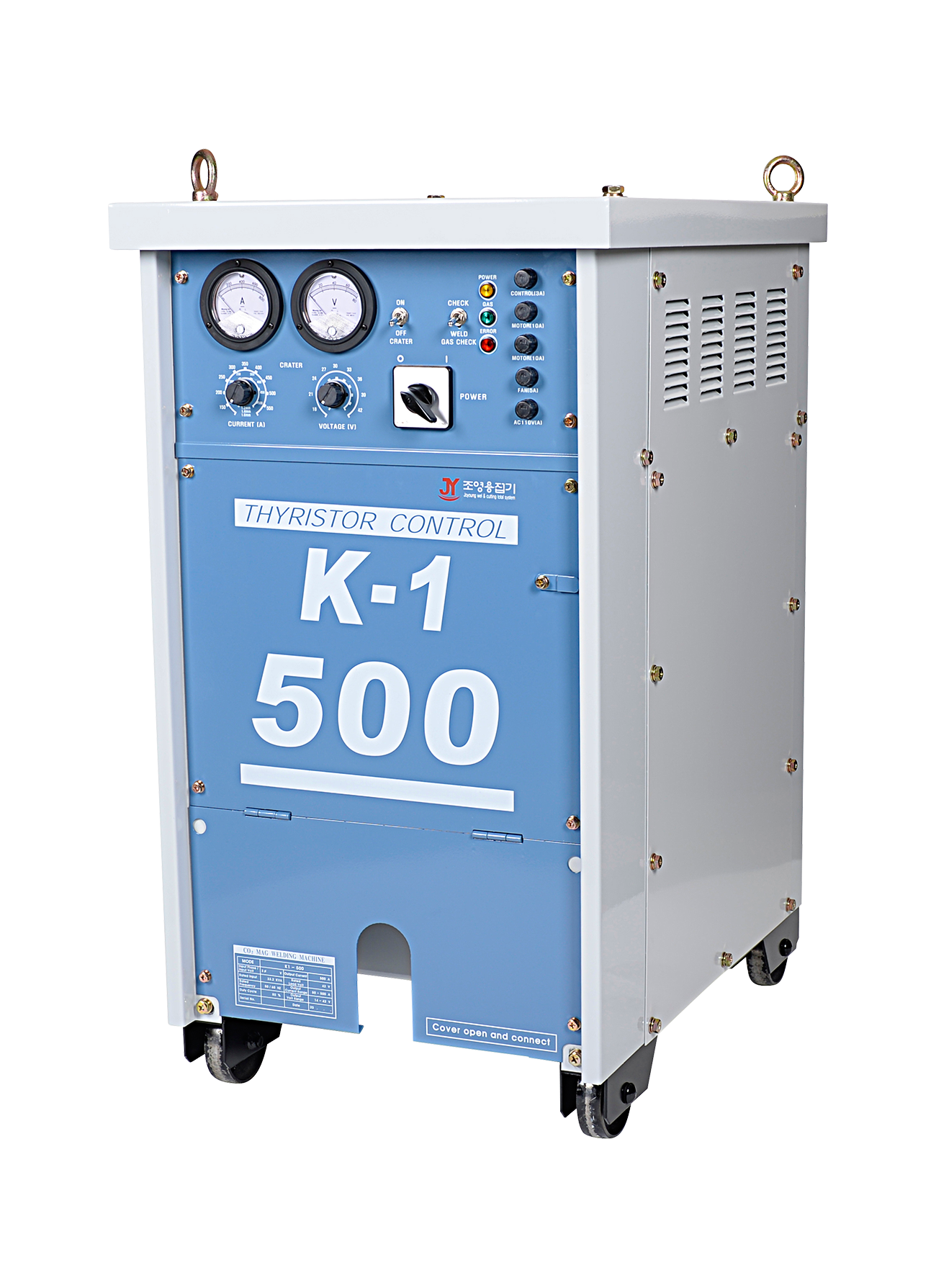

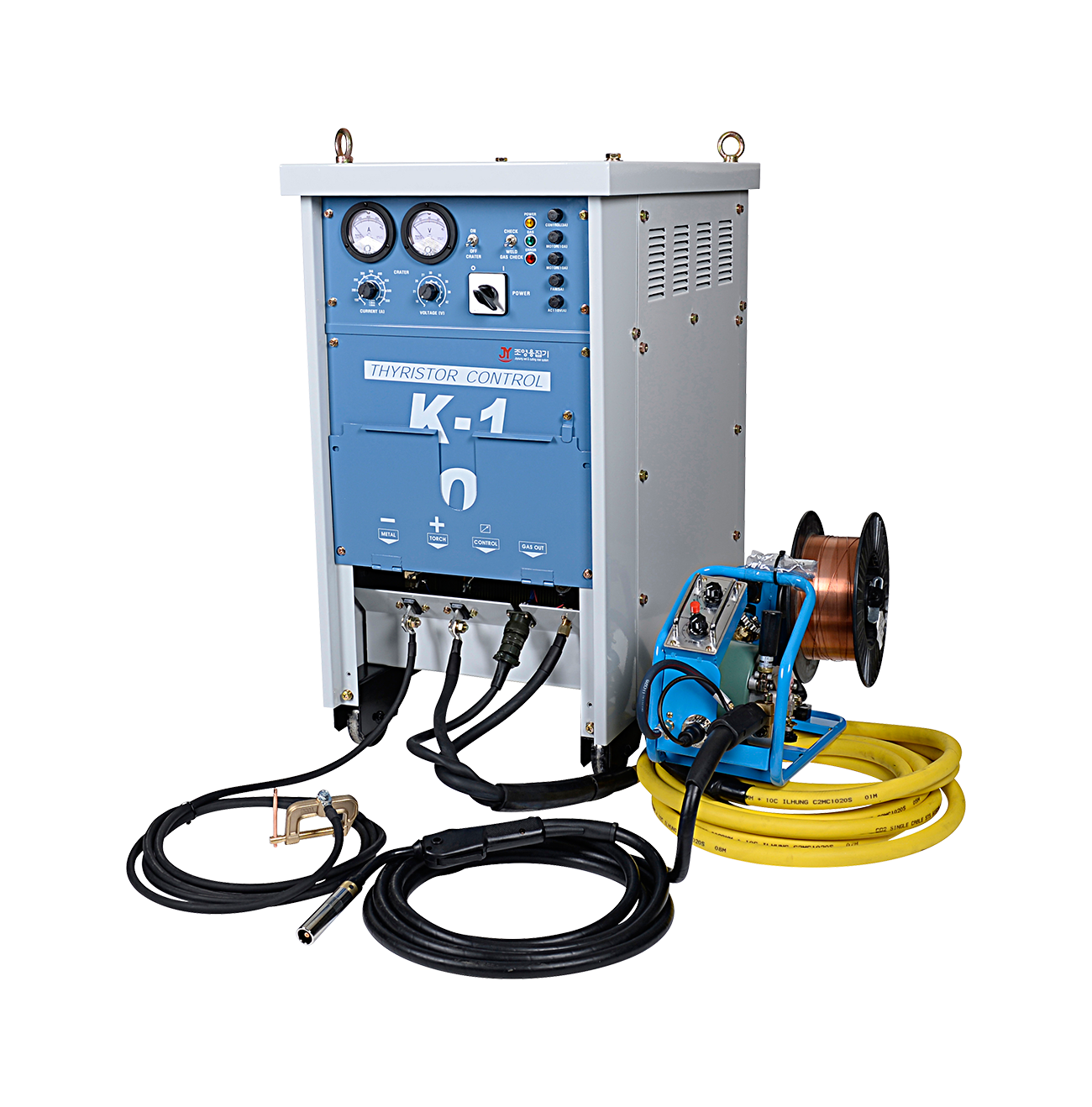

K1 K1-500
Special Feature
특장점① | THYRISTOR(SCR) Control |
---|---|
특장점② | * Weldability : Good weldability is accomplished in all the welding current ranges form minimum current to maximum current with the sustainable control by thyristor. |
특장점③ | * Durability : The main trnasformer, the core of welder, is made of good conductive material to show good heat-resistance and durability. |
특장점④ | * Economical efficiency : Energy-saving design saves the power during unload of arc. |
특장점⑤ | |
특장점⑥ | |
특장점⑦ | |
규격 | |
기타 | ※ Product specification can be changed unexpectedly for product performance improvement. |
제품설명
![dabd5f1ecee0fd707273973d0a42a5a1_1604067009_7994.png](http://joyoungwelding.kr/data/editor/2010/dabd5f1ecee0fd707273973d0a42a5a1_1604067009_7994.png)
![dabd5f1ecee0fd707273973d0a42a5a1_1604067009_3614.png](http://joyoungwelding.kr/data/editor/2010/dabd5f1ecee0fd707273973d0a42a5a1_1604067009_3614.png)
![dabd5f1ecee0fd707273973d0a42a5a1_1604067009_038.png](http://joyoungwelding.kr/data/editor/2010/dabd5f1ecee0fd707273973d0a42a5a1_1604067009_038.png)
Specification | ||
Output Current range | A | 500 |
Output Voltage range | V | 220V / 380V / 440V ± 10% |
Input Voltage |
| 3 Phase |
Input Phase | Hz | 50/60 |
Rated Frequency | KVA / KW | 33.2 / 30 |
Rated Input | V | 42 |
Rated load Voltage | A | 50~500 |
No load Voltage | V | 14~42 |
Duty Cycle | % | 80 |
Control |
| THYRISTOR (SCR) 방식 |
Dimension (WxDxH) | W*D*H (m/m) | 515 x 715 x 920 |
Weight | kg | 210 |
