제품 정보

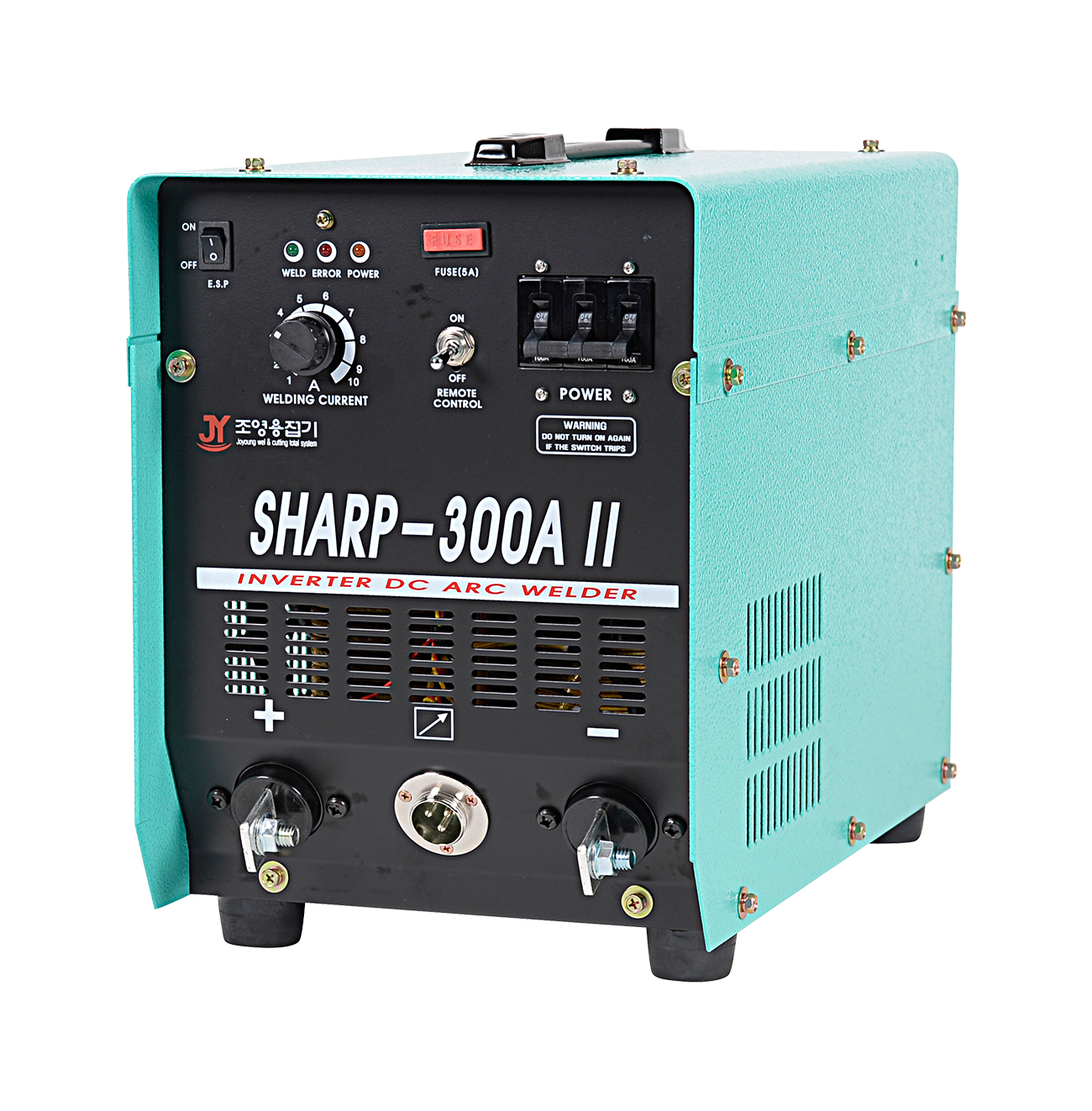

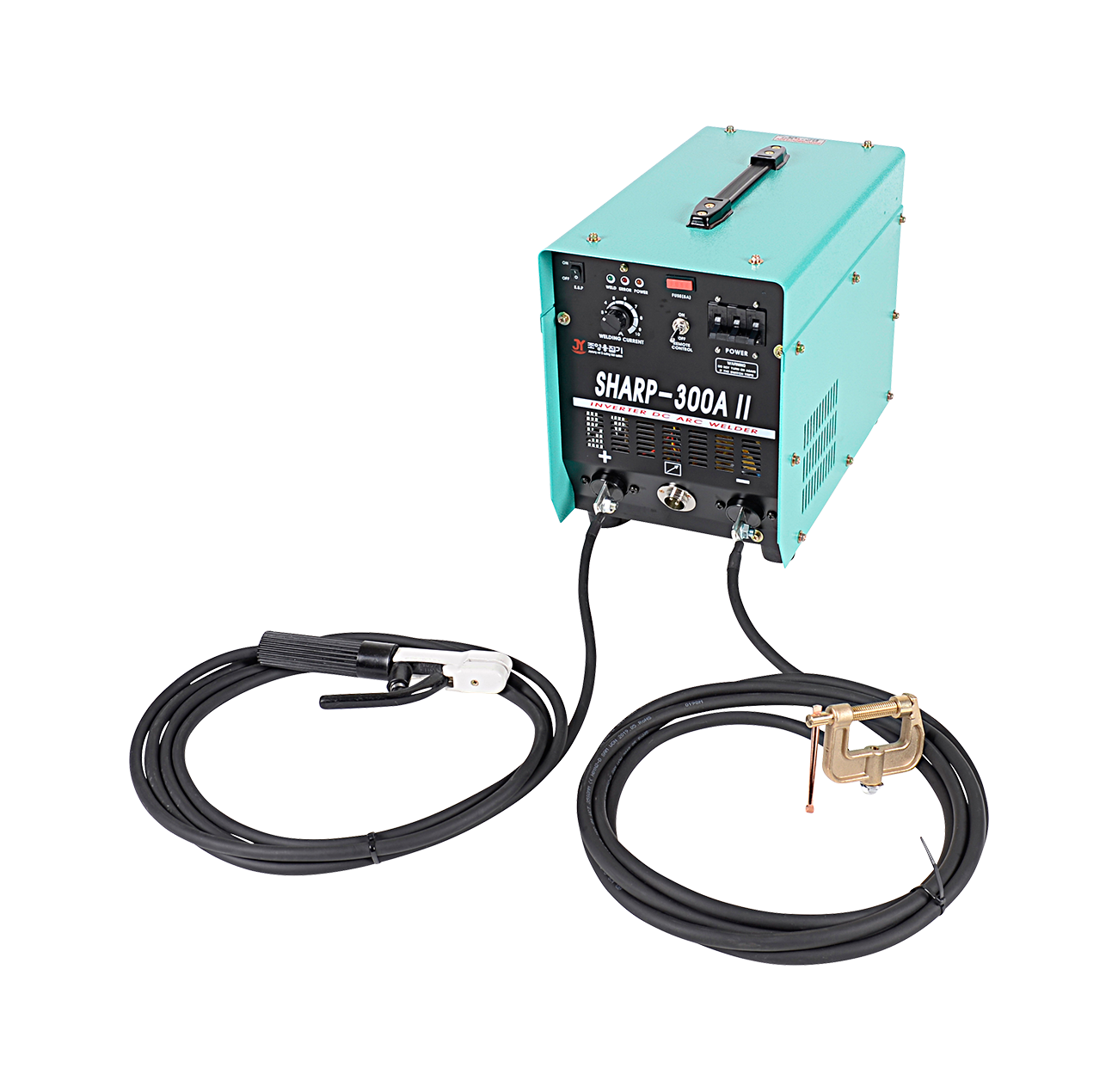

SHARP SHARP-300A II
Special Feature
특장점① | * The best performance for medium or thick plate |
---|---|
특장점② | * Securing the highest profitability with energy saving |
특장점③ | * High use-rate and soft welding property |
특장점④ | * Possible single-phase or triple-phase input |
특장점⑤ | * Built-in electric shock preventin function |
특장점⑥ | * Use welding rod 4.0Ø~5.0Ø(Long welding rod) |
특장점⑦ | * Possible single-phase or triple-phase input |
규격 | 260 x 460 x 350 |
기타 | ※ Product specification can be changed unexpectedly for product performance improvement. / ※ Remote control is separate way option. |
- 이전글SHARP-270A II 20.12.13
- 다음글SHARP-400 20.12.13
제품설명
![34701c920d106e35aacb99455985b6e5_1607854164_7034.png](http://joyoung.dothome.co.kr/data/editor/2012/34701c920d106e35aacb99455985b6e5_1607854164_7034.png)
![34701c920d106e35aacb99455985b6e5_1607854164_1493.png](http://joyoung.dothome.co.kr/data/editor/2012/34701c920d106e35aacb99455985b6e5_1607854164_1493.png)
Specification | |||||||||||||||||||||||
MODE | SHARP-300A II | ||||||||||||||||||||||
Output Current | A | 300 | |||||||||||||||||||||
Input Voltage | V | 1/3 Phase , 220/380/440V ± 10% | |||||||||||||||||||||
Rated Frequency | Hz | 50 / 60 | |||||||||||||||||||||
Rated Input | KVA | 11.2 | |||||||||||||||||||||
Rated load Voltage | V | 32 | |||||||||||||||||||||
Duty Cycle | % | 50 | |||||||||||||||||||||
Dimension (WxDxH) | mm | 260 x 460 x 350 | |||||||||||||||||||||
Weight | kg | 22 |
※ Product specification can be changed unexpectedly for product performance improvement.
※ Remote control is separate way option.
