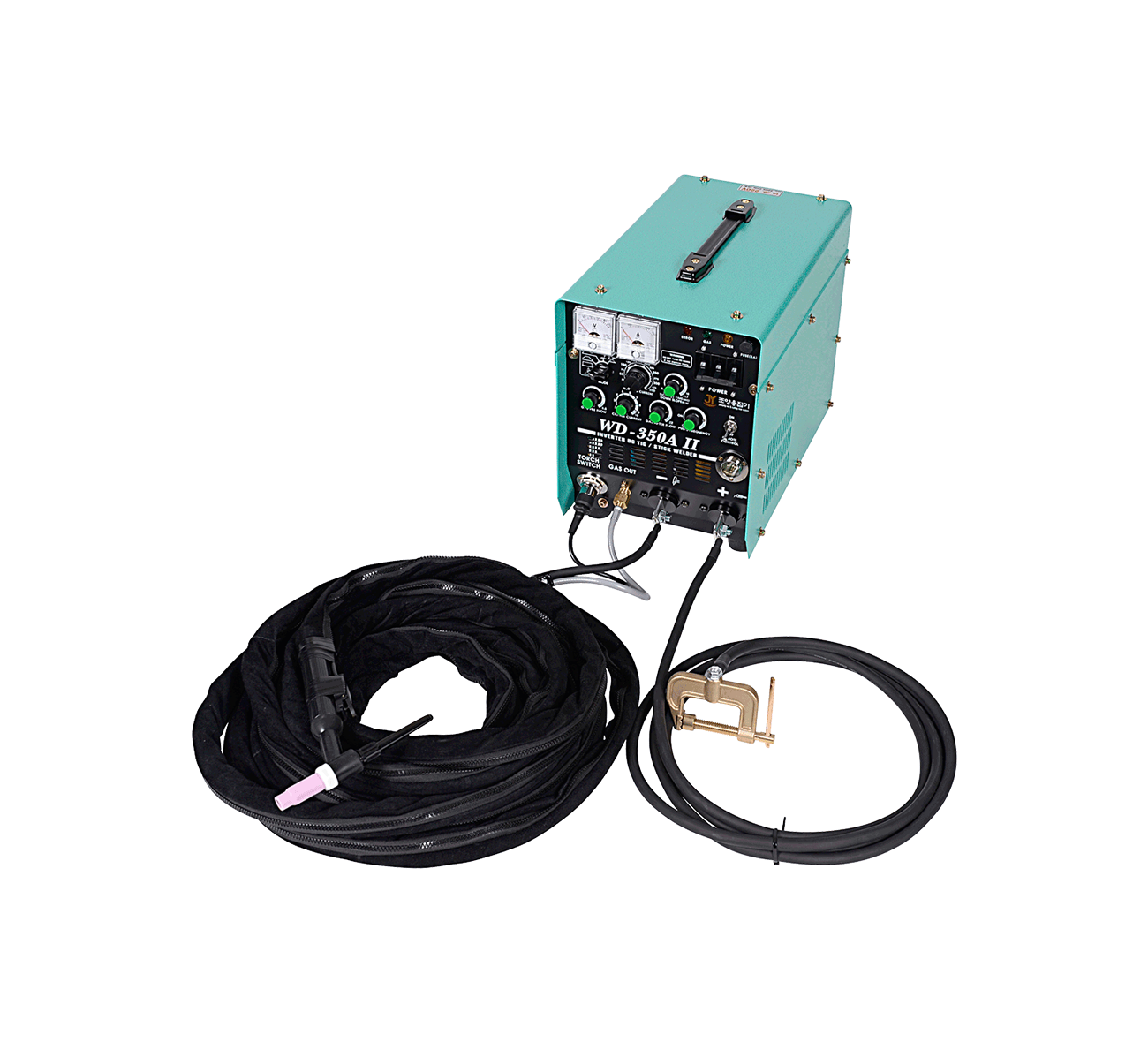

WD WD-350A II
Special Feature
| 특장점① | * Built-in pulse function |
|---|---|
| 특장점② | * Selectable various functions |
| 특장점③ | * High-performance direc-current TIG arc welder |
| 특장점④ | * Built-in remote control function |
| 특장점⑤ | * Excellent performance for thin, medium, or thick plates |
| 특장점⑥ | * Possible single-phase or triple-phase input |
| 특장점⑦ | |
| 규격 | 263 x 454 x 352 / 263 x 454 x 352 |
| 기타 | ※ Product specification can be changed unexpectedly for product performance improvement. / ※ Remote control is separate way option. |
- 이전글WD-300A II 20.12.13
- 다음글WD-350PN 20.12.13
제품설명
Specification | |||||||||||||||||||||||
MODE | WD-350A II (220V) | WD-350A II (220/380/440V) | |||||||||||||||||||||
Process | TIG | STICK | TIG | STICK | |||||||||||||||||||
| Output Current | A | 350 | 200 | 350 | 200 | ||||||||||||||||||
Input Voltage | V | 220 ±10% | 220V / 380V / 440V ±10% | ||||||||||||||||||||
Rated Frequency | Hz | 50 / 60 | 50 / 60 | ||||||||||||||||||||
Rated Input | KVA | 10.2 | 7.3 | 10.2 | 7.3 | ||||||||||||||||||
Rated load Voltage | V | 24 | 28 | 24 | 28 | ||||||||||||||||||
No load Voltage | V | 70 | 70 | ||||||||||||||||||||
| Duty Cycle | % | 50 | 50 | ||||||||||||||||||||
Output Current range | A | 10~ 350 | 10 ~ 200 | 10~ 350 | 10 ~ 200 | ||||||||||||||||||
Gas Pre flow | sec | 0.1 ~ 0.5 | 0.1 ~ 0.5 | ||||||||||||||||||||
Gas After flow | sec | 0.1 ~ 22 | 0.1 ~ 22 | ||||||||||||||||||||
Down Slope | sec | S ~ L(Short ~ Long) | S ~ L(Short ~ Long) | ||||||||||||||||||||
| Arc Spot | sec | 0.1 ~ 10 | 0.1 ~ 10 | ||||||||||||||||||||
Pluse Frequency | Hz | 3 ~ 12 | 3 ~ 12 | ||||||||||||||||||||
Pluse Width | % | 50 | 50 | ||||||||||||||||||||
Crater control |
| Off, On, Repeat | Off, On, Repeat | ||||||||||||||||||||
Dimension (WxDxH) | mm | 263 x 454 x 352 | 263 x 454 x 352 | ||||||||||||||||||||
Weight | kg | 21.6 | 22.6 | ||||||||||||||||||||
